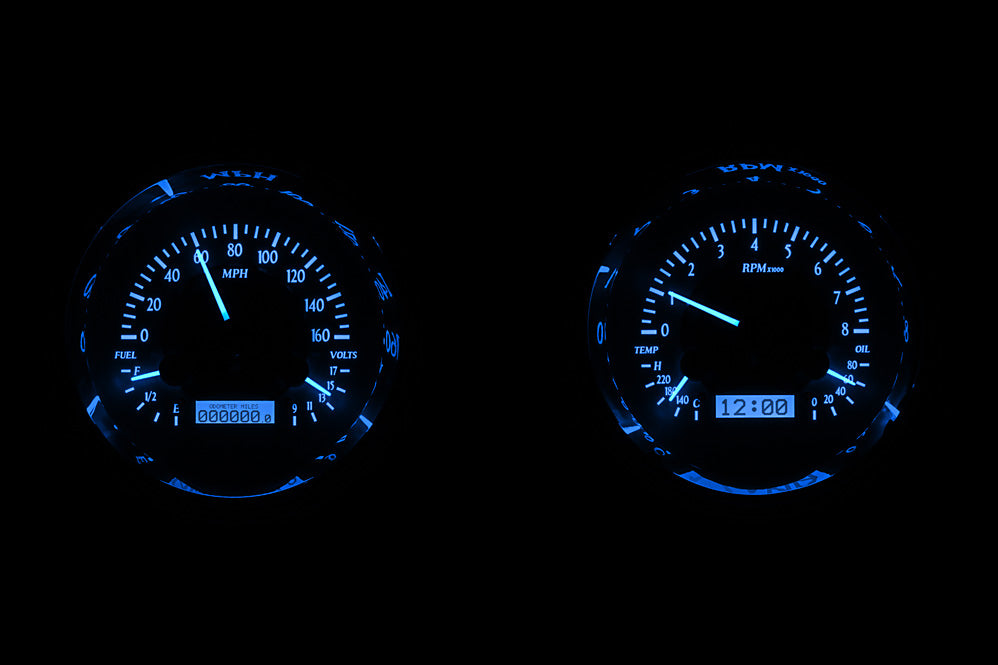

1954 Chevrolet Truck Only Dakota Digital VHX Analog Instrument System - Silver Alloy Style Face - Blue Display

1954 Chevrolet Truck Only Dakota Digital VHX Analog Instrument System - Silver Alloy Style Face - Blue Display

SKU: VHX-54C-PU-S-B

$895.00
$895.00
Sale Sold out

Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

Full 6 Gauge Instrument System includes new reproduction chrome bezels to fit 1954 Chevy and 1955 Series One Pickups.

Digital Gauges

Speedometer 0 -255 MPH (optional metric version 0- 255 km/h)
Tachometer 0- 17,500 RPM
Oil Pressure 0- 99 psi
Water Temperature 0- 300ºF (optional metric version 0- 150ºC)
Fuel Level 0- 99%
Voltmeter 8- 17 VDC
Standard Colors Blue or Teal

Digital Message Centers

Standard Displays
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0- 9,999.9)
Performance Meters
0- 60 MPH Timer (0- 100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall
Gauges
Speedometer (0- 255 MPH/kmh) opposite scale of main speedometer.

Built-in Indicators

Indicators
Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors

Water Temperature 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure 1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/ Generator Replaces GM style speedometer cables with a 10 ft harness.
(Tremec and Ford style adaptors available on request.)
Bushings Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
